Not Available Anymore, See DA210, TE200, TX210

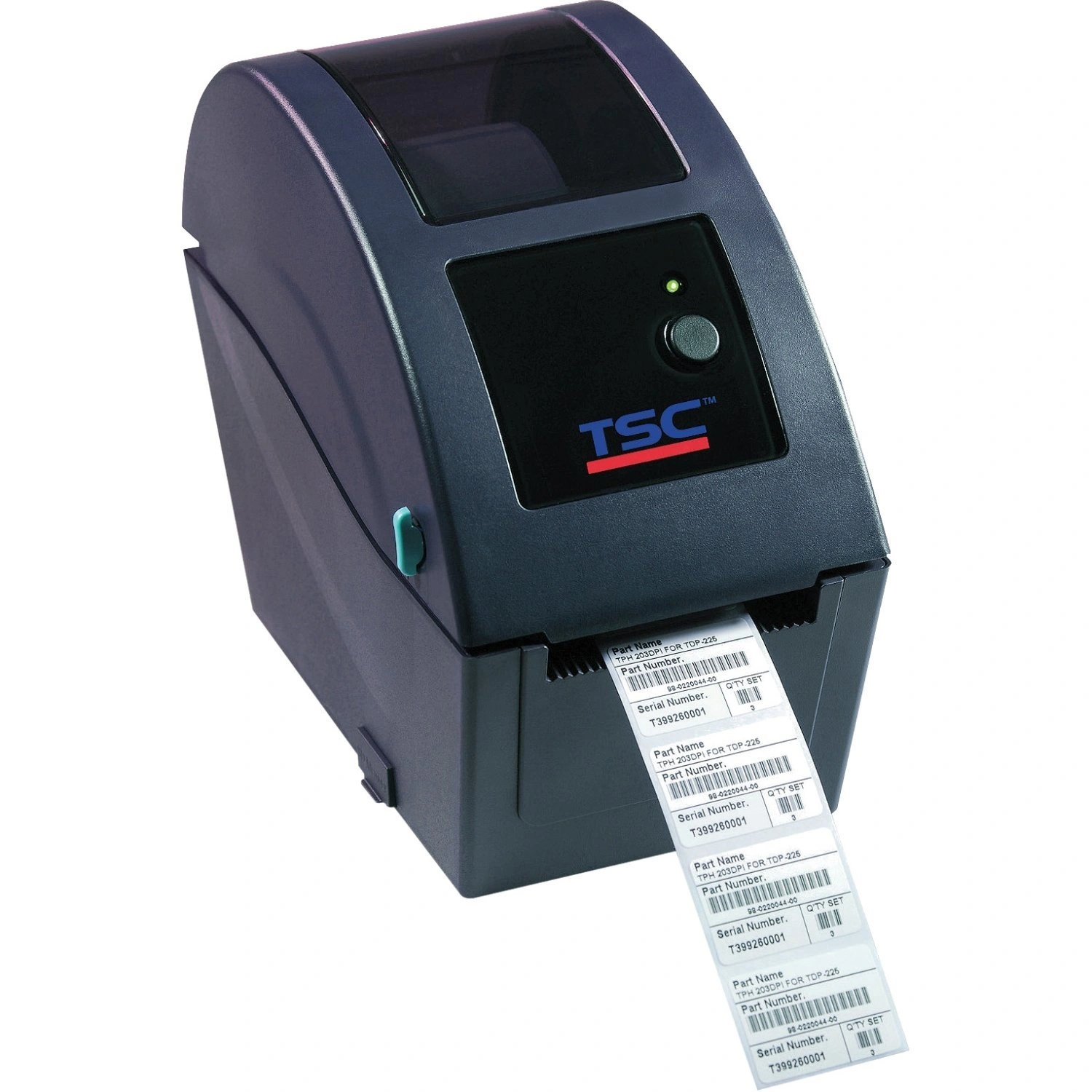

Built with typical TSC durability, reliability and commitment to innovation, the 2” TDP-225 direct thermal printer brings big ideas to a small package and delivers ideal performance for retail and other labeling applications.

Designed with no losable parts, the printer fits into areas other printers cannot and integrates easily into a wide range of applications. The TDP-225 features a user-friendly clamshell design with a large 5” OD centre biased media capacity and a fast 5 inches per second print speed. Simply open the cover and drop your labels mark, or notch is standard and black mark sensor is completely adjustable from side to side.

Features:

• High quality double-walled clamshell design
• Direct thermal print technology
• Fast 5" / second print speed
• Emulates equivalent Zebra printers
• 2 year limited warranty (Longer than equivalent Zebra warranty)
• Bartender Ultralite label printing software is included, (similar to Bartender Basic)
• Easy media loading
• Head-up sensor
• Serial and USB 2.0 connectivity standard
• 3,000+ Labels Per Day

Markets for the TDP-225:

• Retail Point-of-Sale
• Shelf labeling
• Product marking
• Healthcare specimen labeling
• Healthcare patient tracking
• Inventory and asset management
• Small office or home office mailing
• Shipping
• File folder labeling

Specifications:

• 203 DPI Print Resolution
• Max Print Width of 54 mm (2.13”)
• Max Print Length of 2,286 mm (90”)
• Size: 209 mm (L) x 109 mm (W) x 171 mm (H)
• Label Roll Capacity 5” OD, 1” core
• Processor 32-bit RISC high performance processor
• Real time clock Standard
• Printer language TSPL-EZ™
• Media type Continuous, die-cut, black mark, fan-fold, notch, wristband
• Media wound type Outside wound
• Media width 15~60 mm (0.59“~2.36“)
• Media thickness 0.06~0.19 mm (2.37~7.4 mil), max. 150 g/.
• Media core diameter 25.4~38 mm (1“~1.5“)
• Memory - 4MB Flash Memory , 8MB SDRAM , MicroSD card slot for memory expansion, up to 4 GB

Options:

• Optional front LCD display
• Optional internal Ethernet
• Optional stand-alone keyboard
