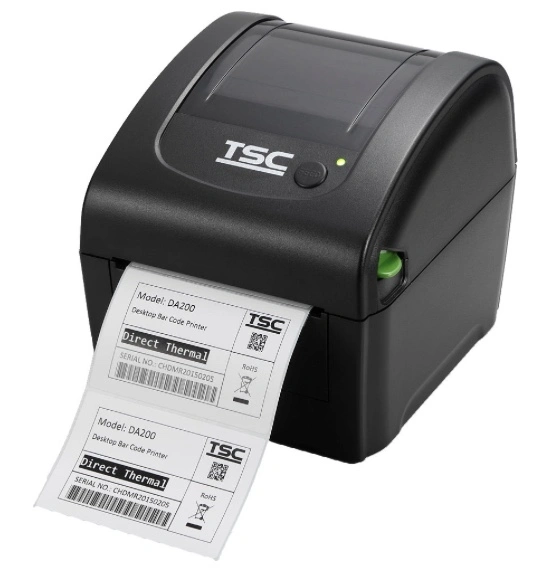

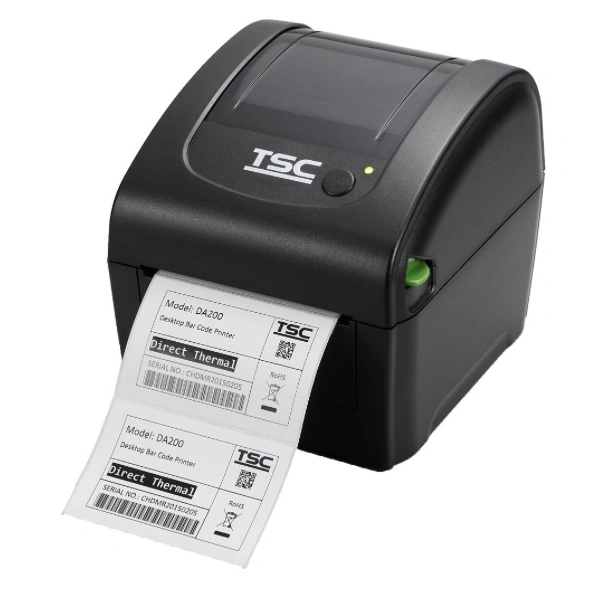

TSC DA-310 4 Inch Direct Thermal Label Printer comes with 300dpi print resolution. The DA310 has USB only while the DA-320 has both USB and Ethernet interfaces.

The TSC DA310 Direct Thermal Label Printer is an affordable option with a durable and reliable design.

For easy loading, the DA310 employs a user-friendly double-wall clamshell design with a large five-inch (outside diameter) center-biased media bay. The spring-loaded label roll holder makes loading simple. Top-of-form sensing – by gap, black mark, or notch – is standard. The printer also comes with a head-open sensor.
USB 2.0 connectivity is standard, and options include Ethernet, Serial RS-232, and USB-A Host connections. Users may also add a Bluetooth or 802-11b/g/n Wi-Fi option.

The DA310 has plenty of memory with 128 MB Flash & 64 MB SDRAM that can be used for easy storage of fonts, international character sets and graphics, and it supports, “right out of the box,” a fully compatible set of standard industry emulations, including Line Mode, Eltron and Zebra languages, making it easy to replace old installed hardware.

Features:

• High quality double-walled clamshell design
• 4 inches per second print speed - 102mm / second
• 128 MB SDRAM and 64 MB Flash memory
• Easy media loading
• USB 2.0 (High speed mode)
• TSPL-EZ firmware emulates Eltron and Zebra languages out of the box
• Bluetooth 4.0
• ENERGY STAR qualified
• Free Windows drivers and Bartender Lite Label design software (available via download) (Not Mac Compatible)
• Mac Drivers available for Apple Mac use
• 2 year limited warranty

Applications:

• Small Parcel Shipping
• Mail Room Address and Routing Labels
• Shipping & Receiving
• Entertainment and Transportation Ticketing
• Retail Point-of-Sale
• File-Folder Labeling

Media:

• Max Print Speed: 102mm per second
• Max Print Width: 105.7mm
• Label Roll Capacity: 127 mm (5“) OD
• Media Type: Continuous, black mark, fan-fold, notched (outside wound)
• Media Width: 19 - 114 mm (0.7“ - 4.5“)
• Core Diameter: 25.4 - 38 mm (1” - 1.5”)
• Label Length: 10 - 1,016 mm (0.39“ - 40“)

99-058A001-00LF - DA200

99-158A001-0004 - DA210
