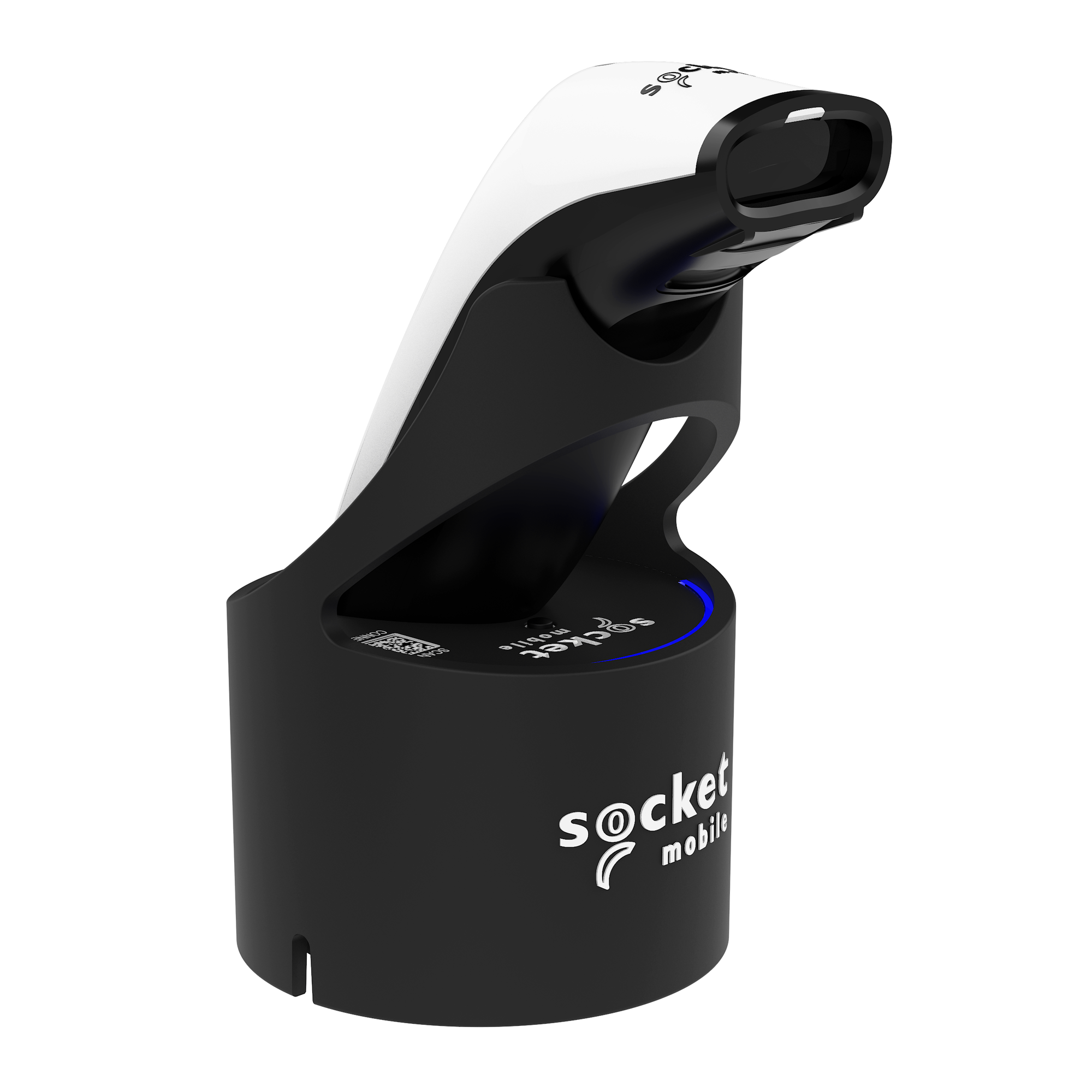

The S721 scanner paired with Socket Mobile's Magic Dock, is made for shared counters and workstations. The S721 charges, stores and connects the scanner in one place, and scanned data goes straight into the application you have open.

Available options

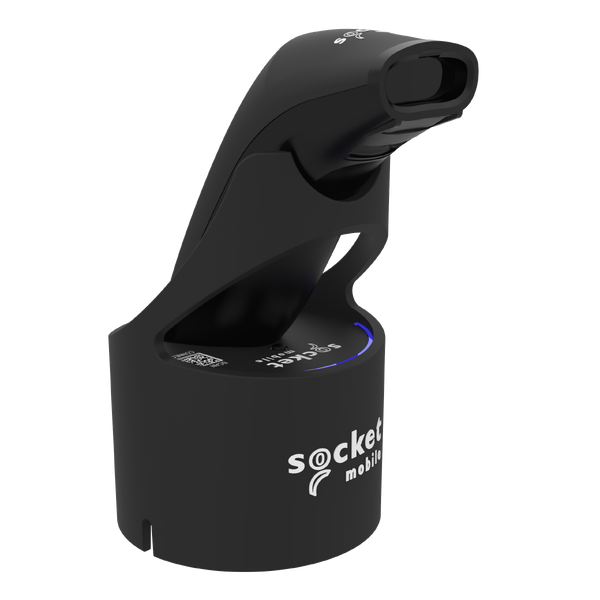

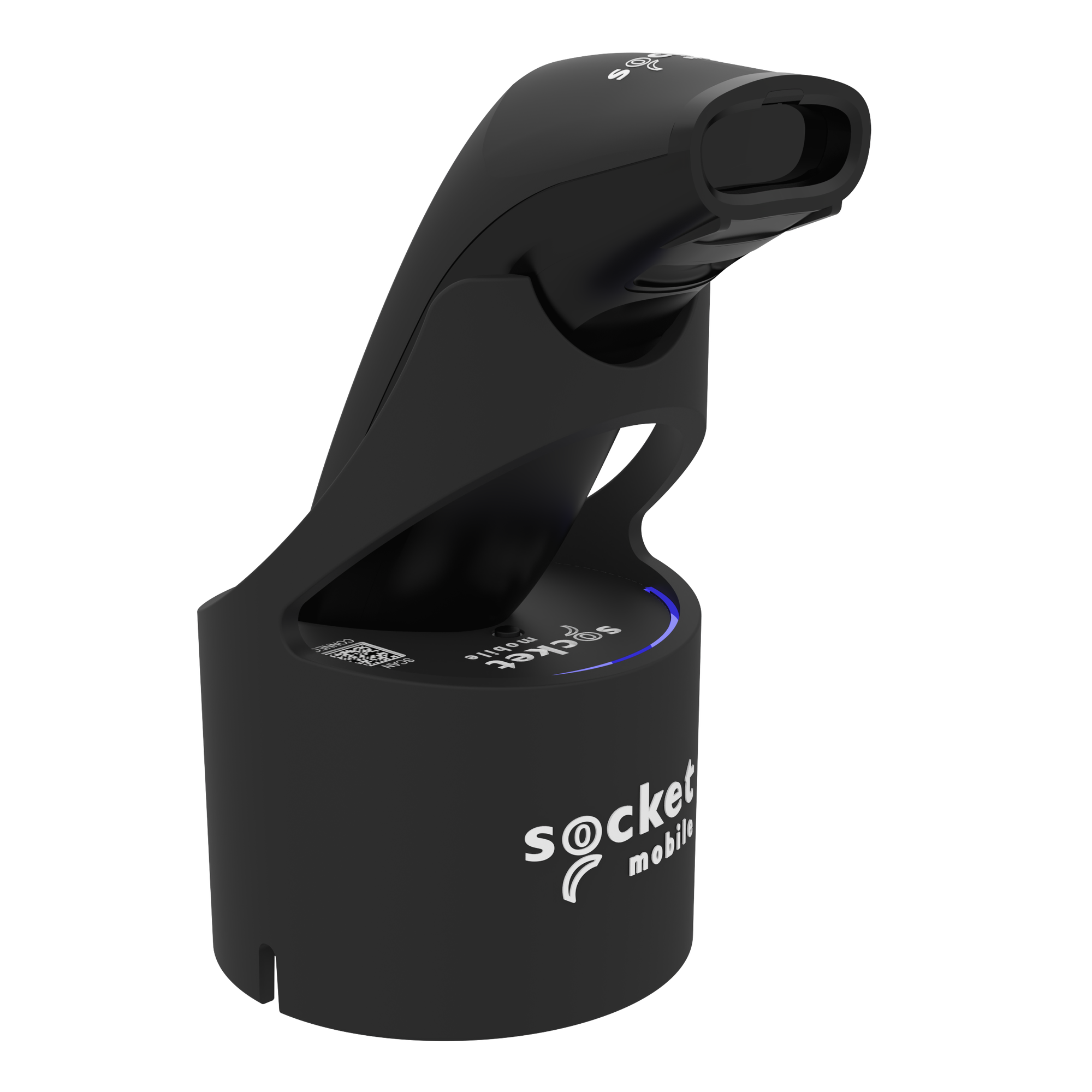

• Black scanner + Black Magic Dock (CX4845-4169)

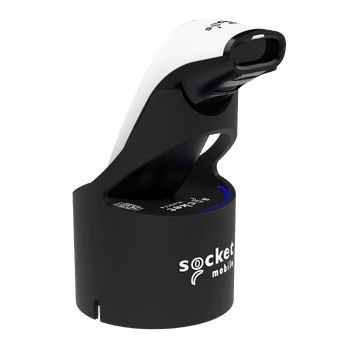

• White scanner + Black Magic Dock (CX4853-4177)

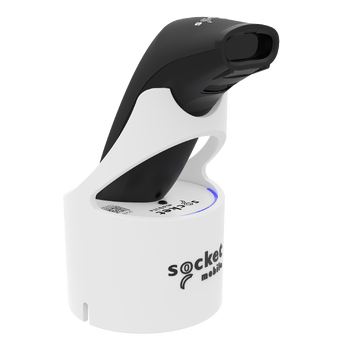

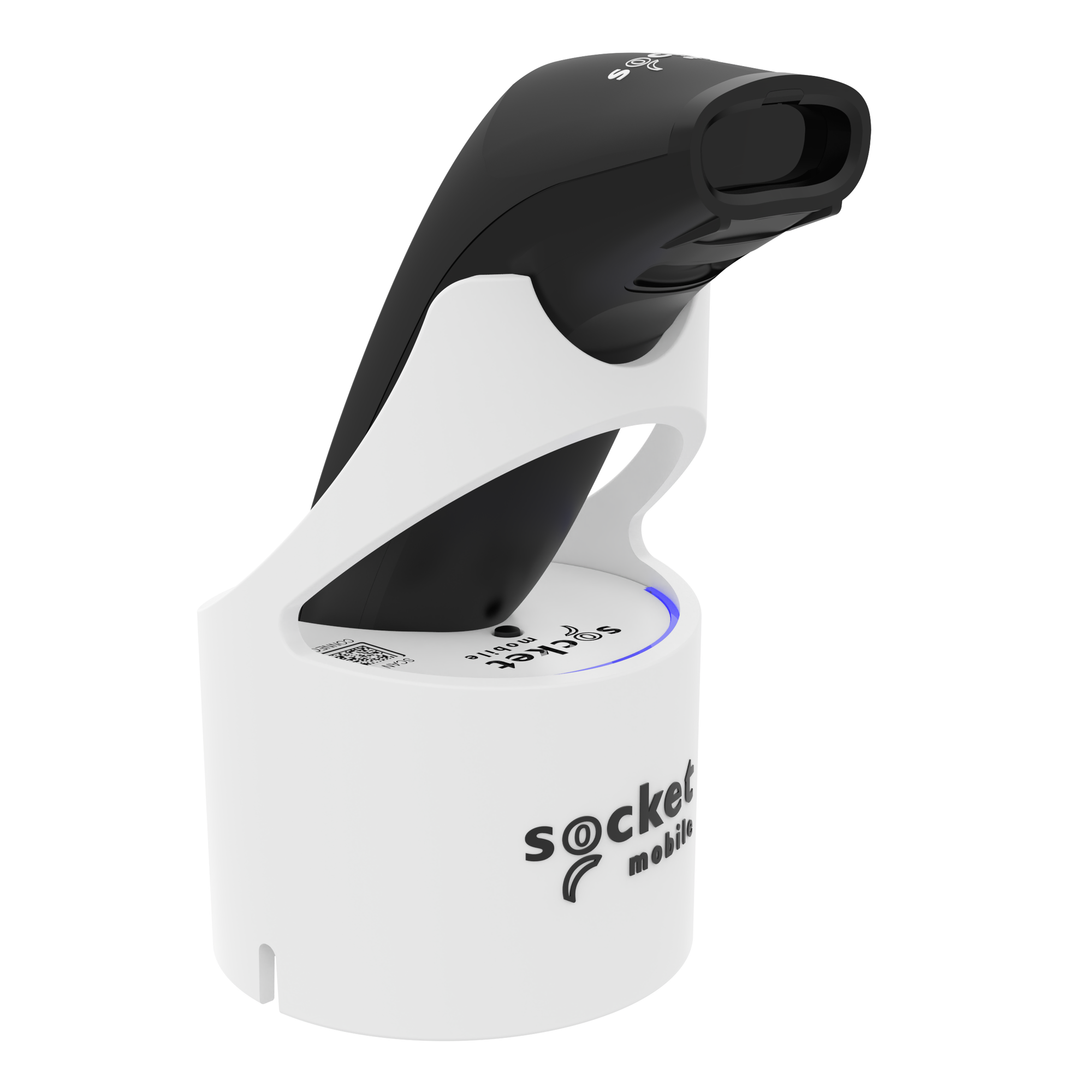

• Black scanner + White Magic Dock (CX4846-4170)

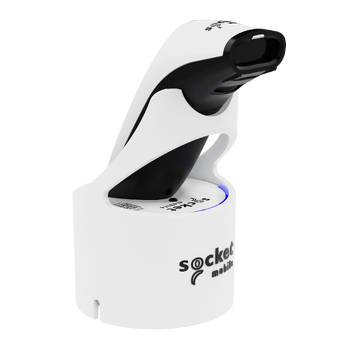

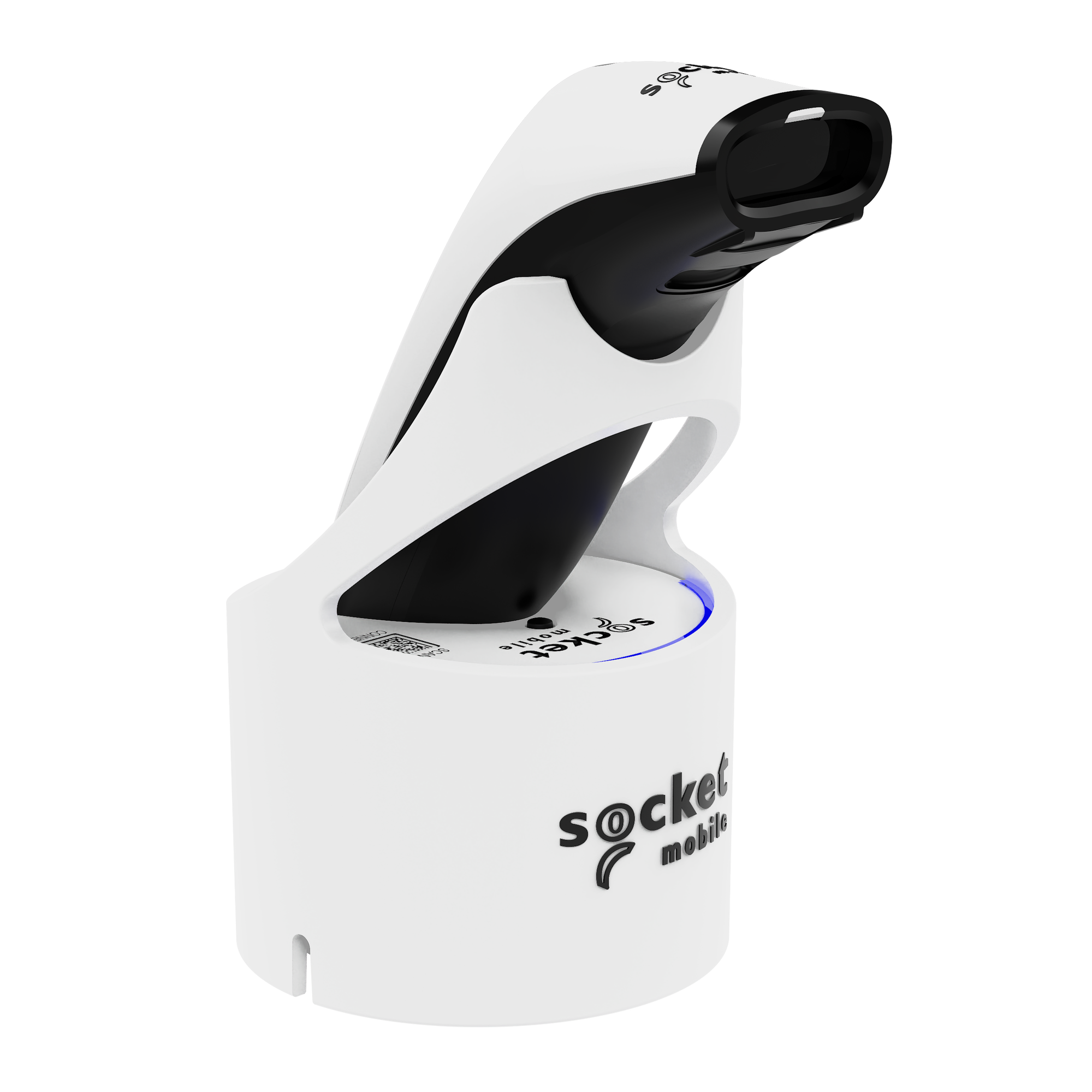

• White scanner + White Magic Dock (CX4854-4178)

The Magic Dock gives the SocketScan S721 a permanent home on the counter. It's built for sites where several staff share a station across shifts. The scanner stays charged and connected, so it's always where it should be, and nobody has to dig through Bluetooth settings.

Setup uses scan-to-connect: you pair the scanner by scanning a barcode. Once connected, scanned data goes directly into the active application. That works with standard keyboard-style input, and with apps that have Socket Mobile's CaptureSDK built in for extra features.

The S721 itself is a compact 1D/2D imager. It reads printed and on-screen barcodes, including QR, Data Matrix and PDF417, and its battery lasts a full shift.

Why choose the Magic Dock bundle?

Scanner features:

• Scan type: 1D & 2D imager, omnidirectional, reads screens
• 1D codes: UPC-A/E, EAN/JAN-8/13, Bookland EAN, Code 128, Code 39, Code 93, Codabar, GS1 DataBar, Interleaved/Industrial 2 of 5, Trioptic (plus Code 11, Matrix 2 of 5, MSI)
• 2D codes: QR, Micro QR, Data Matrix, PDF417, MicroPDF417, Aztec, MaxiCode, Han Xin
• Scan range: 2.8 to 91.7 cm (depends on barcode)
• Connectivity: Bluetooth LE, up to 10 m. Scan-to-connect via Magic Dock
• Data input: Keyboard-style input, plus CaptureSDK-enabled apps
• Battery: 2 × NiMH, 2000 mAh, replaceable. Approx. 6 hr charge. 500 cycles
• Durability: 1.2 m drop to linoleum. 2,500 tumbles at 1 m
• Operating temp: 0 °C to 45 °C
• Weight: Approx. 55 g (scanner)
• Warranty: 12 months
