Compact Laser 1D Fixed Mount Scanner

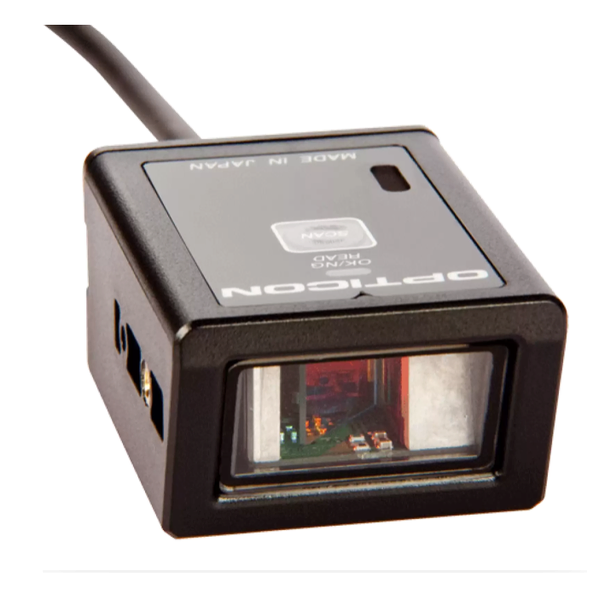

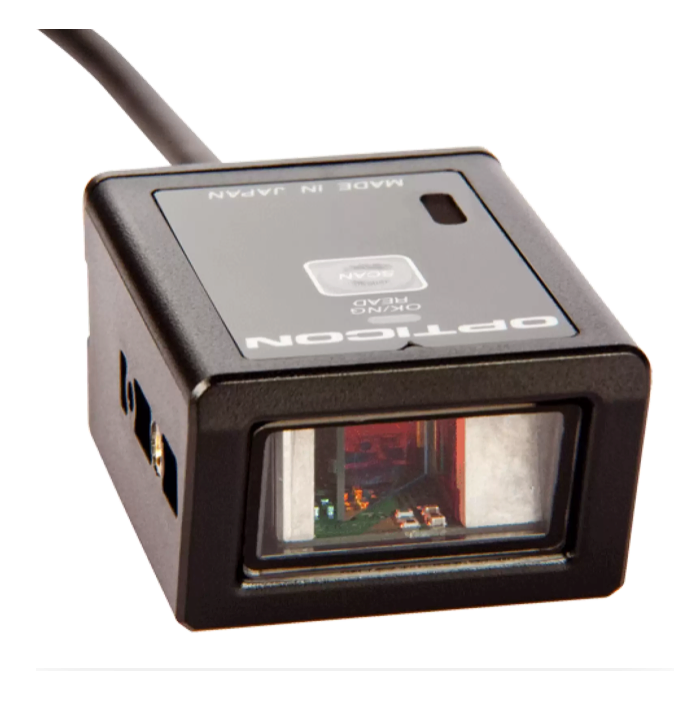

Opticon NlV-1001 OEM 1D Laser Scanner USB HID OPNLV1001-UHID

Reliable fixed position scanner employs an aggressive laser scan engine that reads at a rate of 100 scans per second with integrated auto-trigger mode enables hands-free operation.

The NLV1001 offers a wide variety of configurable options for easy integration in your business process and is equipped with a compact ABS housing with 2 different mounting options.

Other Features:

• Scan Engine - Laser 1D
• Light Source 650 nm visible laser diode
• Scan Pattern - Single Line - Bi-Directional
• Scan Rate 100 Scans/sec
• Ambient Light Immunity - Fluorescent 3,000 lux max, Direct Sun 50,000 lux
• Symbologies supportedJAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISMN-ISSN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
• Composite codes, MicroPDF 417, PDF417
• Programming Method - Scan Barcodes from Manual
• Indicators - 1 LED (red/green/orange)
• Operating Modes - Manual Trigger, Auto Trigger, Stand Detection
• Communication Type - Cabled
• Keyboard Wedge - MiniDIN6 F/M connector
• USB - Ver. 1.1, HID/VCP, USB-A connector
• Supply Voltage - 5 V ± 10 % (Keyboard Wedge and USB), 6 V (min. 4.5, max. 6.5 V) (RS232)
• Power Consumption - Max. 100 mA (typical use)
• Drop Specification - 1.5 m / 5 ft drop onto concrete surface
• 10 - 100 Hz with 2G for 1 hour
• Environmental Sealing IP42
• Operating Environment- 5 to 50 °C RH 5 - 95 % (non-condensing)
• Storage Environment-20 to 60 °C RH 5 - 95 % (non-condensing)
• EMC/Safety StandardsCE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II
• External Dimensions (WxDxH)Scanner 56 x 149 x 109 mm / Stand 146 x 106 x 295 mm
• WeightScanner 80 g (excl. Cable) / Stand 385
