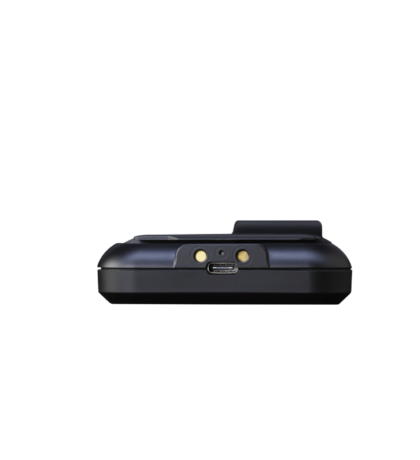

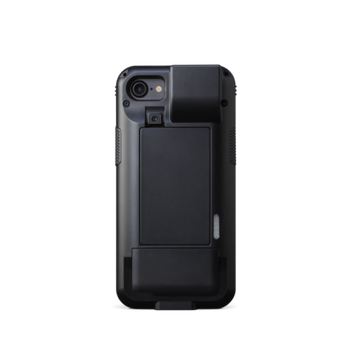

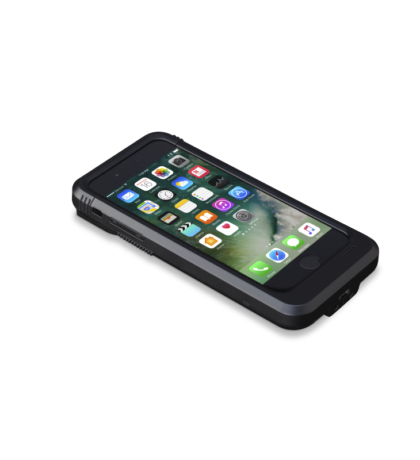

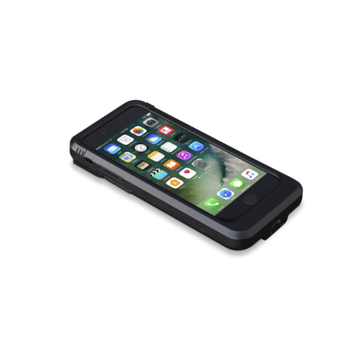

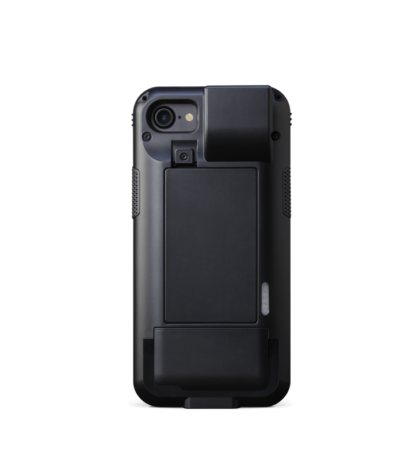

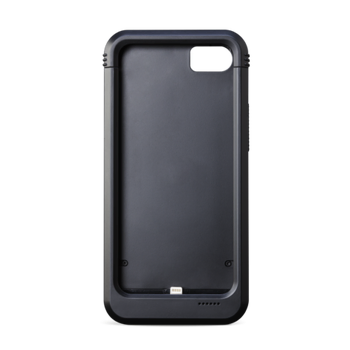

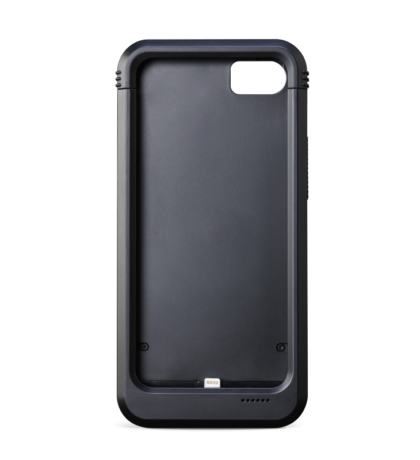

Linea Pro 7 for iPhone 6/6S/7/8 - Mid Range Option Available, RFID, Bluetooth Optional.

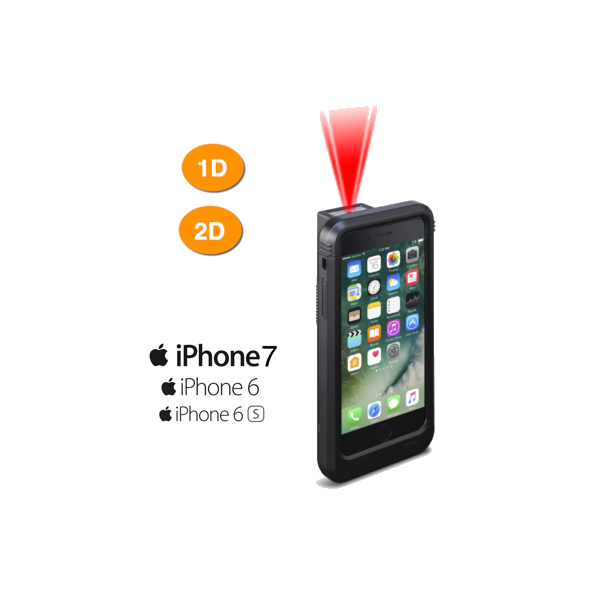

Linea Pro 7 for iPhone 6/6S/7/8 Scanner / Imager with MSR - 1D and 2D Options available (Select from the drop down list)

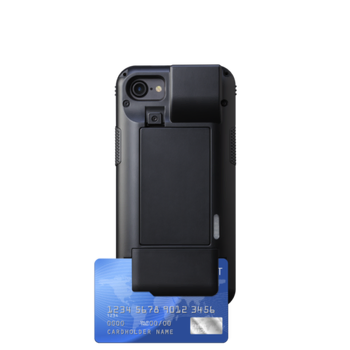

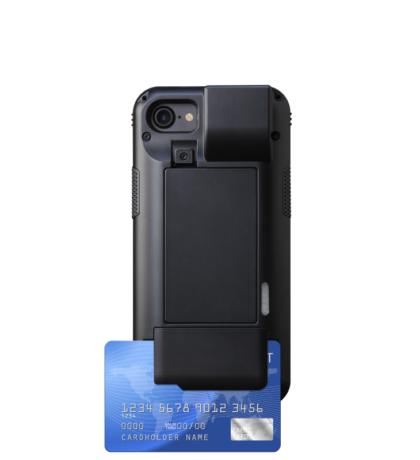

Capturing data is as simple as a push of a button. Swipe a loyalty card, process a payment, check stock levels and scan inventory using the intuitive Linea Pro 7 sled.

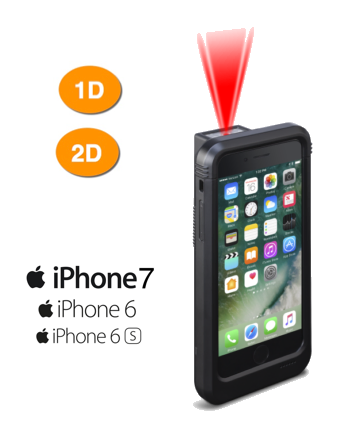

Compatible with the iPhone 6 / 6S / 7 / 8 / SE II / SE III

Available Models: (Please select from the above list)

• Linea Pro 7 Scanner 1D Bluetooth (Popular - Works for most stock take environments / applications scanning 1D product barcodes) LP7-BT-PH7
• Linea Pro 7 Scanner 2D (2d scanners can scan QR codes, for example) LP7-Z2D-PH7
• Linea Pro 7 Scanner 2D Bluetooth RFID LP7-Z2DBTR-PH7
• Linea Pro 7 Scanner 2D Mid Range LP7-ZM2D-PH7

Standard Range vs Mid Range Model:

• SR can scan no more than 500mm away from barcode
• MR can scan up to 900mm away from barcode
• The exact range will depend on the barcode size

Please note:

• NO Pistol grip available for this scanner due to the swappable batteries
• The MSR is for loyalty cards in Australia, it is not yet intergated with any banks for EFTPOS payment purposes

Features - Standard:

• Li-ion Battery, Lightning Connector, Bi-directional MSR
• 1D Laser or 2D High Speed Imager (supports all major 1D or 2D barcodes)
• 3-Tack bidirectional Magnetic Stripe Reader (MSR) / Type: ISO 7810, 7811, 7813
• Compatible: 1D Barcode Laser or 2D Barcode Imager (Select from the list) , SRED Capable MSR, RFID, Bluetooth (SPP/iAP)
• Dimensions: 1D and 2D Scanner options (LxWxH): 157 mm x 77 mm x 26 mm (6.2 in x 3 in x 1 in)
• Weight: 148 grams (5.2 oz.) without iOS Device
• Port: USB Type-C for device charge and sync
• MSR not certified for credit or debit card payments in Australia

Optional Features:

• 1D Barcode Laser or 2D Barcode Imager, SRED Capable MSR, RFID, Bluetooth (SPP/iAP)
• Contactless: RFID - MIFARE and ISO compatible (see User Manual for details)
• Encryption and Key Management: AES 128/256, 3DES DUKPT
• Bluetooth 2.0 compatible - Class 2 (option) - Serial Port Profile (SPP)

Specifications:

• 2100mAh Battery
• Up to 16,850 scans in a period approximately 26 hours on a full charge (depending on use)
• Indicator Visual: 4 LEDs for battery status
• Indicator Audio: Electromagnetic Buzzer
• Operating Environment: Temperature: -10°C to +40°C (14°F to +104°F) Humidity: 5% to 90% RH
• Storage Environment: Temperature: -20°C to +50°C (-4°F to +122°F) Humidity: 5% to 90% RH

Warranty:

• Twelve (12) months RTB (Return To Base) warranty from the date of purchase against manufacturing faults.
• Optional warranty uplift to a total of 3 Years (One (1) year manufacturers warranty + Two (2) year uplift). Please ask for pricing.
