OBSOLETE - Replaced by the Toshiba Receipt Printer 6145-1TN

OBSOLETE - Replaced by the Toshiba Receipt Printer 6145-1TN

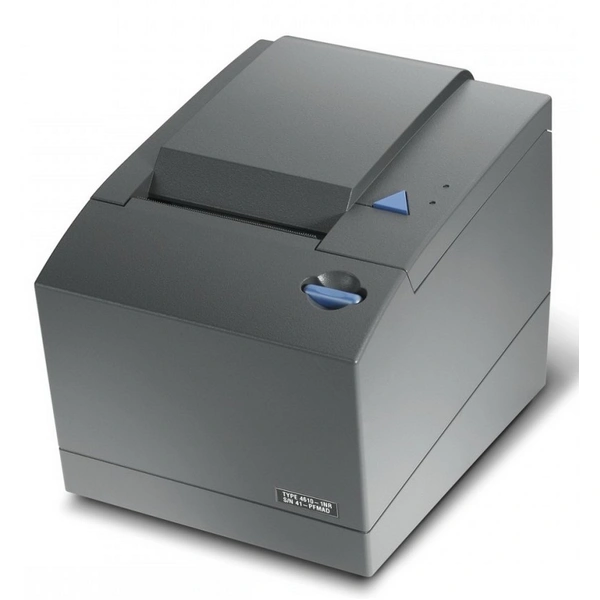

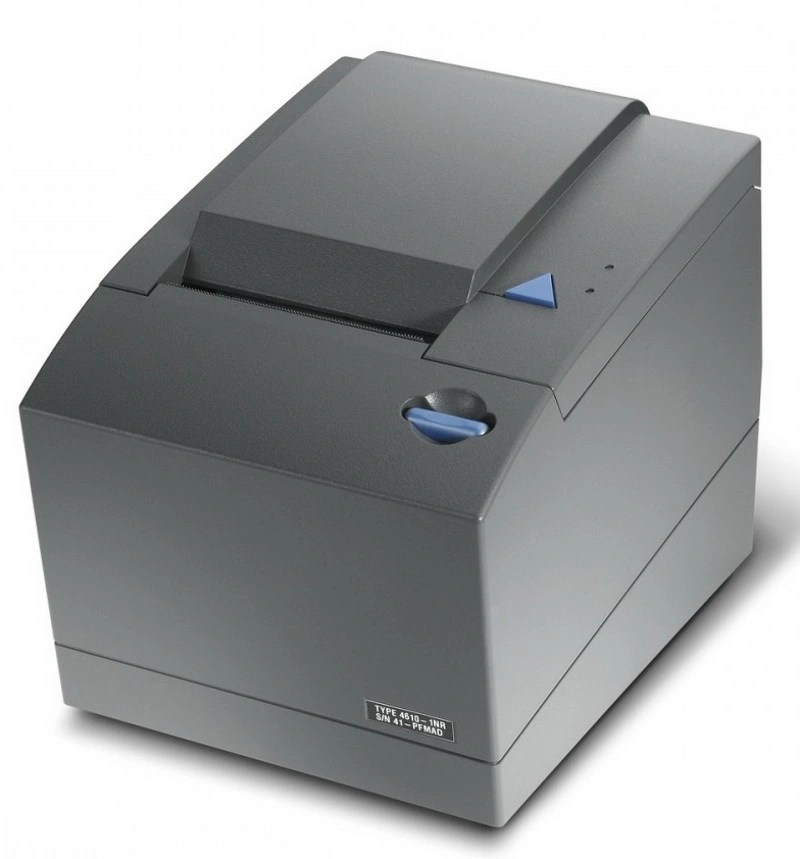

Built for ultimate retail-hardened performance in demanding environments, the Toshiba 4610-1NR SureMark printer delivers speed, reliability and unmatched serviceability and manageability as well as an earth-friendly design and packaging that set new world standards.

Power Cable Options:

• USB - Medium Power Cables - Powered USB - 1.8 Meter Cable (4610-1NR-3)
• USB - Long Power Cables - Powered USB - 3.8 Meter Cable (4610-1NR-1)

Specifications:

• Print Speed:  Receipt station (one-color paper) 80 lps @ 8 lpi, 60 lps @ 6 lpi
• Print Speed:  Receipt station (two-color paper) 35 lps @ 8 lpi, 26 lps @ 6 lpi
• Printing resolution (thermal) 203 dpi
• Models Available:  Powered USB plus standard USB, RS-485, standard RS-232 (external power brick or special power cable required)
• Ports DC In (except RS485) USB/Powered USB or RS232 or RS485 (24 or 38 V) (Interface card dependent) OEM Cash Drawer (+24 V)
• Sensors Paper low, paper out, cutter health, print head health, usage counters, paper jam detection
• Mounting options Integrated (Integration tray), Distributed (free standing), optional Wall mount bracket
• Size:  Dimensions (WxDxH): 145 mm X 177 mm X 159 mm, Weight:  1.4kg
• Warranty:  12 month 9-5 next business day onsite warranty (metro areas)

Support for wide range of receipt media - thickness/type of media: 1.6 - 3.7 mil (thousandths of an inch) paper thickness. Factory feature selection of 2.28 in (58 mm) or 3.15 in (80 mm) paper width

Media type supported/roll diameter: Receipt paper rolls - maximum 4 in (102 mm) diameter

Software Command Sets Native, Epson ESC POS Emulation, Compatibility Mode

Operating systems and driver support A compatibility mode is provided in the printers to enable use of existing drivers and applications with only minor modifications. Native mode support is as follows:

• Toshiba 4690 Operating System: USB and RS-485: V5R2 and V6R2** Microsoft Windows XP, Microsoft Windows Embedded for Point of Service (WEPOS) 1.11, Microsoft Windows Embedded POSReady 2009, Microsoft Windows Embeded POSReady 7, Microsoft Windows 7 (Professional/Ultimate): TOSHIBA Retail Environment for SUSE Linux Enterprise Desktop (SLED) 11, SUSE Linux Enterprise Server (SLES) 11, SUSE Linux Enterprise Point of Service (SLEPOS) 11: PC DOS 2000:
• Epson compatibility mode Support is provided for RS-232 connected printers using Direct I/O communications only
• Resident barcode formats UPC A/E, JAN 8(EAN), Code 39, ITF, Code 93, Code 128 a, b, and c, Codabar, PDF417, QR, GS1 databar

Reliability:

• 150 km - thermal print head life
• 1.5 million cuts - cutter life

Toshiba Part Numbers - 4610-1NR-1:

• 4610-1NR 4610-1NR Single Station/Thermal/IOR Warranty
• 2921 IRON GRAY
• 4925 LONG PRINTER CABLE - POWERED USB
• 6259 INTERFACE ADAPTER USB SINGLE STATION

Toshiba Part Numbers - 4610-1NR-3:

• 4610-1NR 4610-1NR Single Station/Thermal/IOR Warranty
• 2921 IRON GRAY
• 4919 MEDIUM PRINTER CABLE - POWERED USB
• 6259 INTERFACE ADAPTER USB SINGLE STATION
