Now Replaced by Honeywell Thermal Transfer Label Printer PD45S Ethernet, USB. Serial

Now Replaced by Honeywell Thermal Transfer Label Printer PD45S Ethernet, USB. Serial

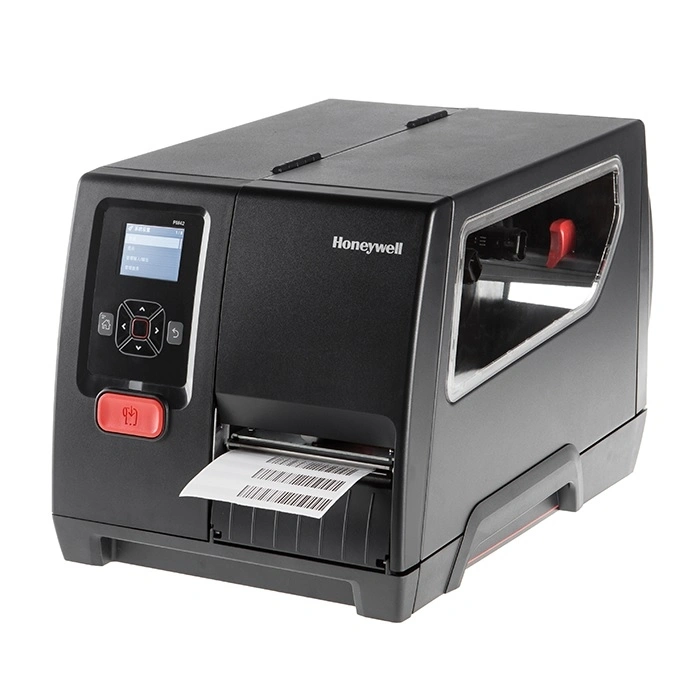

The user-friendy and durably constructed Honeywell PM42 is a mid-range industrial label printer is designed for maximum reliability and uptime. The PM42 printer features an all-metal, die-cast aluminum construction for enhanced durability and reliability in the harshest industrial environments.

Included In Box:

• Includes in the box: Quick Start Guide and Ribbon Core for ribbon rewind
• Requires: ANZ Power Cord and interface cables

Printer Specifications include:

• Standard Thermal Transfer – 203 dpi Max
• Super Fast Up to 300mm / sec print speed for 203/300dpi model or up to 250mm / sec for 406dpi
• All Metal, die-cast aliminium construction
• Fast, high-volume industrial thermal printing - affordable choice for printing 5,000 - 15,000 labels per day
• Magnetic, Quick-mount Printhead
• Easily Removable print roller
• Full Colour, Graphical Display
• Integrated Web Interface enables easy setup, monitoring and configuration through mobile devices
• Standard Interfaces: USB Device, USB Host with Serial and Ethernet
• Printer Command Languages: IPL, Direct Protocol (DP), ZSim2.0 (ZPL), DSim (DPL), XML enabled for SAP® All and Oracle® WMS
• Includes in the box: Quick Start Guide and Ribbon Core for ribbon rewind. Requires: ANZ Power Cord and interface cables

Printer Management:

• Smart Printing technology – delivered through Honeywell C# for Printers and Fingerprint
• Run apps, print labels and even control other devices directly from the printer, without the need for a connected PC

Media:

• Labels and Tags, Linerless and Linered Media
• Max./Min. Width: 114 mm/19 mm (4.5 in/0.75 in) Thickness: 3 mm to 10.4 mm (0.12 in to 0.41 in)
• Configuration: Roll-fed or fanfold
• Sensing: Gap, notch, black mark, continuous
• Label Roll Max. Diameter: 213mm(8.38 in)
• Label Roll Core: 38 mm–76 mm (1.5 in–3 in)
• Ribbon Supports: Carbon Inside and Carbon Outside
• Roll Max. Diameter: 80 mm (3.15 in), approx. 450 m (1,476 ft)
• Core ID: 25 mm (1 in)
• Type: Wax, mid-range, resin
• Max. Width at 203 dpi: 108 mm (4.25 in
• Max. Width at 300 dpi: 106 mm (4.17 in
• Max. Width at 406 dpi: 104 mm (4.09 in)
• Max. Length at 203 dpi: 4.8 m (15.75 ft)
• Max. Length at 406 dpi: 1.2 m (3.94 ft)
• Ribbon Roll Max. Diameter: 80 mm (3.15 in), approx.450 m

 Printer Command Languages:

• IPL, DP, ZSim2 (ZPL-II), DSim (DPL) • XML enabled for SAP® AII and Oracle® WMS

Applications/Drivers:

• InterDriver Windows® printer driver • Honeywell Device Types for SAP • Honeywell label design and print package

Smart Printing Languages:

• Honeywell C# for Printers – Smart Printing Develope
• Resource Kit - Write apps with .NET-compatible development environments • Honeywell Fingerprint, Use Honeywell Fingerprint ApplicationBuilder (IFAB)

PM42200000
