Custom Kube II Thermal Receipt Printer, USB, Serial

Custom Kube II Thermal Receipt Printer USB Serial (Now Order Custom P3X)

$745.00

Ex GST: $677.27

Details

Now Order Custom P3X

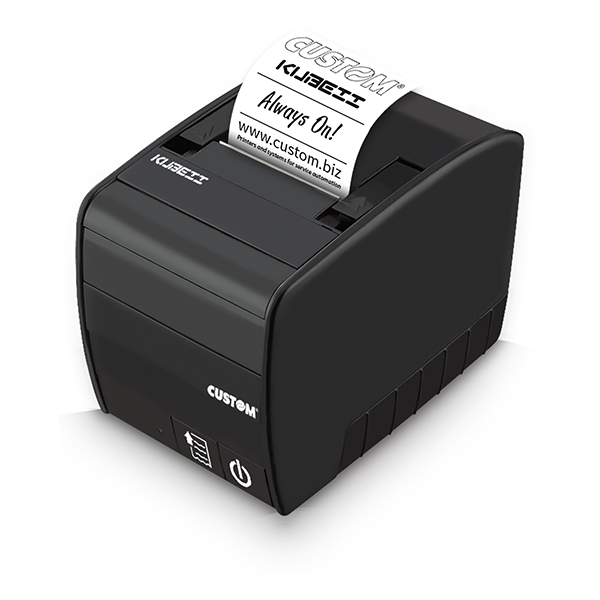

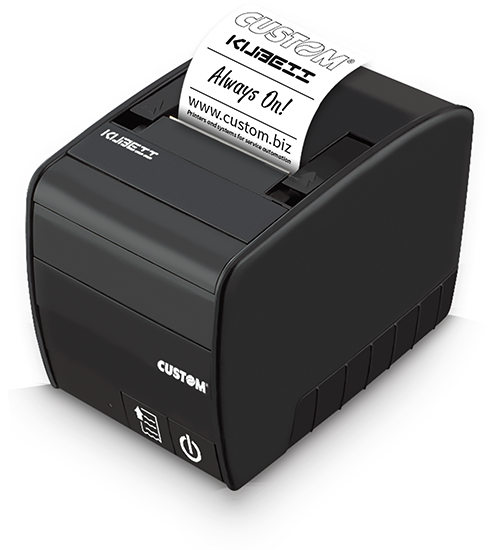

KUBE II is the ideal thermal POS printer for the retail and hospitality sectors. Thanks to its compact, appealing and robust design, and the possibility to install it both vertically and horizontally, it is the ideal solution for Points of Sale. .

KUBE II comes also equipped with special accessories like the Spill-proof Cover and sides available in different colours (red, silver and beige). KUBE II comes equipped with USB, Serial RS232 or Ethernet interface, with drawer control drivers.

Features:

Printer for fiscal slips, orders, receipts and/or invoices
Possibility to move and position the characters and graphics in any direction
Powerful and extremely fast: 250mm/sec
High quality printing of logos and graphic coupons
200dpi resolution
1D and 2D barcode printing (PDF417)
Paper width: 80/82.5mm
Paper thickness: 63 μm
High capacity: paper diameter: 90mm
Highly durable printing head (200Km of printed paper)
Auto-cutter for 2.000.000 cuts
International True Type fonts
Embedded web server for real time programming and functions monitoring for the Ethernet version
Vertical mounting
24 Month Warranty
10-16 Week Lead Time

Specifications:

Printing Method: Thermal printing
8 dots / mm
Resolution: 203 DPI
Printing (mm/sec): High quality 125, Normal 200, high speed 250
Character set: PC437, PC850, PC860, PC863, PC865, PC858 (euro)
Printing Format: Normal, height and width from 1x to 8x, expanded, reverse, underlined, script
Printing Direction: Straight, 90°, 180°, 270°
Paper width: 80mm/ 82.5mm
Paper weight: from 58 to 90 g/m²
Paper thickness 63 μm
Roll Dimension max: Ø 90 mm
Emulation CUSTOM / POS
Interfaces: USB 1.1 full speed + Serial RS232
Data Buffer: 20 Kbytes
Flash Memory: 512 KB
Graphic Memory: 1 608 x 862 dots logo
Drivers (Windows WHQL certified): WindowsTM XP, 2K3, Vista, W7, W8 (+64bit support), W10, Linux (32/64 bit), OPOS, JavaPOS, MAC OSX
Software Tools: CePrinterSet; Virtual COM
Power supply: 24 Vdc ± 10% (external power supply)
Medium consumption: 1.5 A (50% printing rate)
DKD Function: 1 driver or customer display directly connected
MTBF: 360,000 hours (electronic board)
Safety: EN60950 2001
Marks CE, RoHS Compliant
Dimensions: 209 (L) x 152 (H) x 140 (W) mm
Weight: 2.3 Kg
