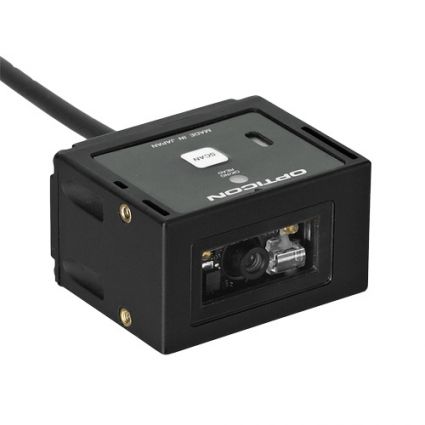

Opticon NLV-3101 Fixed Position 2D Scanner USB HID Or RS232 OPNLV3101A-UHID
$369.00
$335.45
In Stock
SKU
OPNLV3101A-UHID
Compact 2D Fixed Mount Imager Scanner.
Opticon NLV-3101 Fixed Position 2D Scanner USB HID OPNLV3101A-UHID Or RS232 is optional.
The snappy Opticon NLV3101 is the most compact fixed postion 2D imager on the market. If you are looking for a 2D fixed mount scanner this device is for you!
Applications:
- Retail POS
- Self service solutions -kiosk
- Parking lot ticket machines
- Medical or pharmaceutical analysis machines
Features
- Automatic Scanning Operation
- High End 1D and 2D Scanning
- 2D Imaging engine
- RS232, USB or KBW interface
- Up to 60 Frames per seconds
- Mobile mode reads barcodes from mobile phones
- Multiple indicator lights
Specifications:
- Scan Engine - CMOS area sensor, gray scale
- Scan Pattern - Area Imager (752 x 480 pixel array)
- Motion Tolerance - Fixed mount
- Scan Angle - Horizontal 40.6°, Vertical 26.4°
- Contrast Ratio - 20% Minimum reflective difference
- Pitch Angle - N/A
- Skew Angle - N/A
- Resolution - 0.169 mm / 7 mil at PDF417
- 0.212 mm / 8 mil at QR code & DataMatrix
- Depth of field at Code 39
- 85 - 125 mm res. 0.127 mm / 5 mil
- 65 - 205 mm res. 0.254 mm / 10 mil
- 60 - 295 mm res. 0.508 mm / 20 mil
- at QR Code
- 90 - 115 mm res. 0.212 mm / 8.4mil
- 55 - 195 mm res. 0.381 mm / 15 mil
- Performance may be impacted by Bar code quality and environmental conditions
- Ambient Light ImmunityFluorescent 10,000 lx max
- Direct sun 100,000 lx max, Incandescent 10,000 lx max
- Indicators - Visual: 1 LED (green/blue/orange)
- Non-visual: Buzzer
- Interfaces - USB HID
- Symbologies supported:
- 1D: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey, USPS
- Postal Code: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, Postal JPN, POSTNET
- 2D Code: Aztec Code, Aztec Runes, Composite codes, Codablock F, Data Matrix, (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code
- Supply Voltage - 6V ± 10%
- Power Consumption - Max. 200 mA
- Operating Environment - 0° ~ 45°C
- Relative Humidity up tp 20-85% none condensing
- Storage Environment -20° ~ 60°C
- Relative Humidity up tp 20-90% none condensing
- Drop Specification - Designed to withstand 0.75M drops to concrete
- Environmental Sealing - IP65
- ESD Protection15 kV (Non-destructive)
- External Dimensions (WxDxH)41.1 x 33 x 24 mm
- Weight - 30 g excluding Cable
- Product Compliance - CE, FCC Class B, VCCI Class B, RoHS, IEC 62471, EN55022, EN55024, FDA CDRH Class II
OPNLV3101A-UHI ; OPNLV3101A-R
